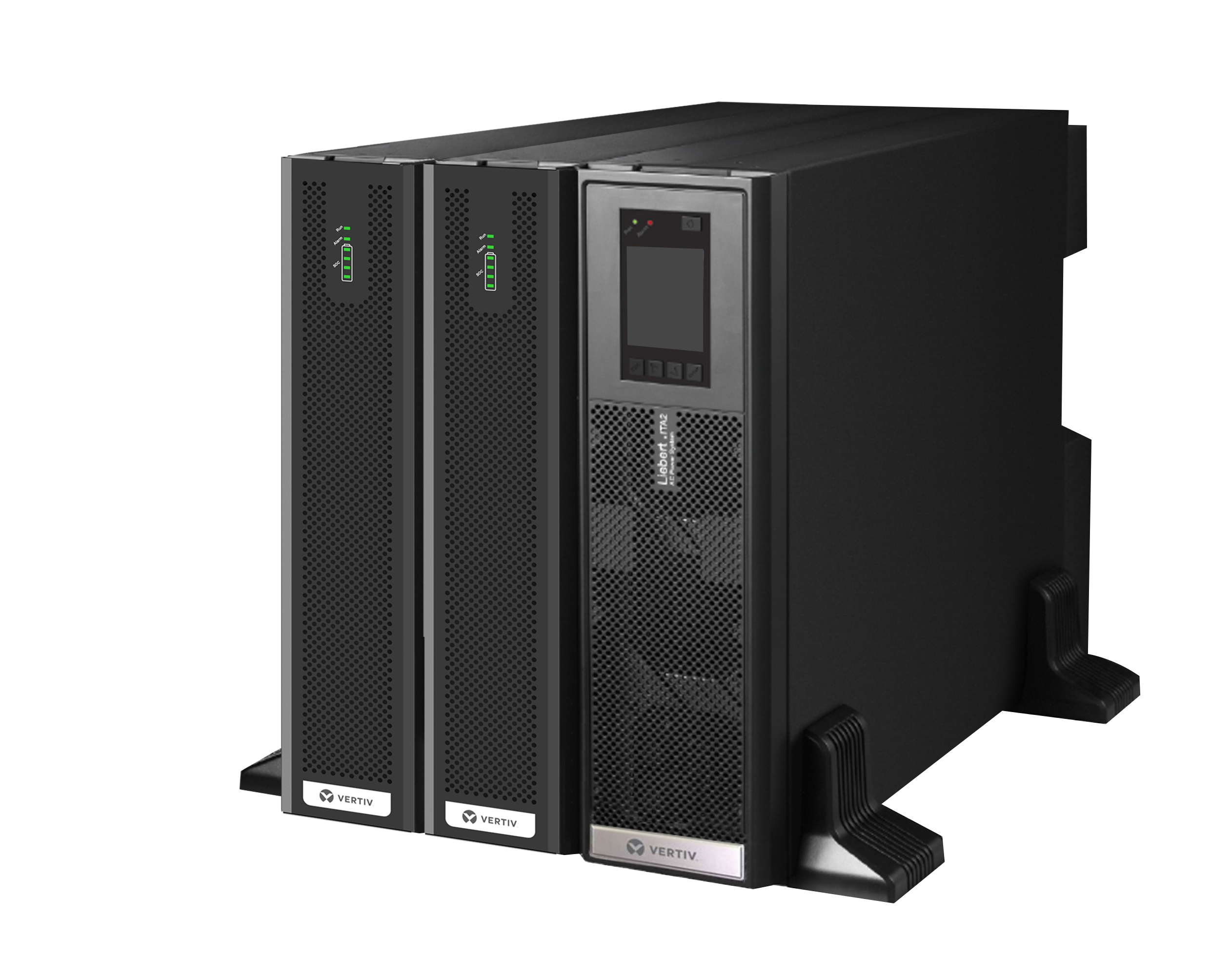

IndonesiaVertiv: Liebert ITA2 5-20kVA UPS
Liebert ITA2 from Vertiv features a robust, highly efficient and innovative design that's built to withstand even the harshest environments. Ideal for various business environments, the Liebert ITA2 provides up to 99% efficiency, ensuring that your business is always protected and always on.
Liebert ITA2 5-20kVA - Frequently Asked Questions
Q1: What is the MTBF of ITA2? A: MTBF for ITA2 is 165,106 hours, applicable to all models. | Q2: Can I use ITA2 when I need 60Hz output, but input is 50Hz? A: Yes. |
Q3: Will there be a derating when I use the minimum number of blocks for ITA2? A: The minimum number of blocks for ITA2 5, 6, 10 kVA is 12 blocks while for ITA2 16, 20 kVA is 24 blocks. When using these numbers, UPS will be derated by 0.7 | Q4: Can I use ITA2 in motor applications? A: ITA2 was tested to be compatible with motor load. In theory, as long as the inrush current is within the UPS capacity and less than 100ms, there should be no problem. |
Q5: Can I use 2N/LBS with ITA2? A: LBS cable is only available for ITA2 16 and 20 kVA. | Q6: Can I parallel ITA2 same capacity (different model)? 1 LB and 1 standard model? A: Yes. |
Q7: Is there an external battery charger option for ITA2? Can I use ITA1 external charger? A: There's no option for external charger for ITA2. ITA1 charger cannot be use for ITA2 UPS. If there's a need for higher capacity, use the long back-up model of ITA2. | Q8: Can I use parallel communication cable kit for ITA1 to parallel ITA2? A: No. Parallel cable kit for ITA1 is 15-pin, but ITA2 is 9-pin. |

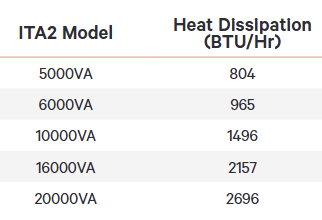

Q9: ITA2 20kVA LB model has 13A charging current. Can this be set to a lower value? A: The 13A is the maximum charging current of UPS. In practical use, the actual max charging current is determined by the AH number of the battery in the LCD and charging limiting point is 0.1-0.25C, the default value is 01.C, it can be set by service software PARAMSET e.g If the AH number of the battery is set to 18AH in the LCD, the actual max charging current is 1.8A (18*0.1). If the AH number of batter is set to 130AH, the actual max charging current is 13A (130*0.1). If set AH number of the battery is greater than 130AH, the actual max charging current is still 13A (130*0.1). | Q10: What is the heat dissipation at full load of ITA2? A:  |
Contact our expert team to assist you in selecting the right Vertiv solution for you.
